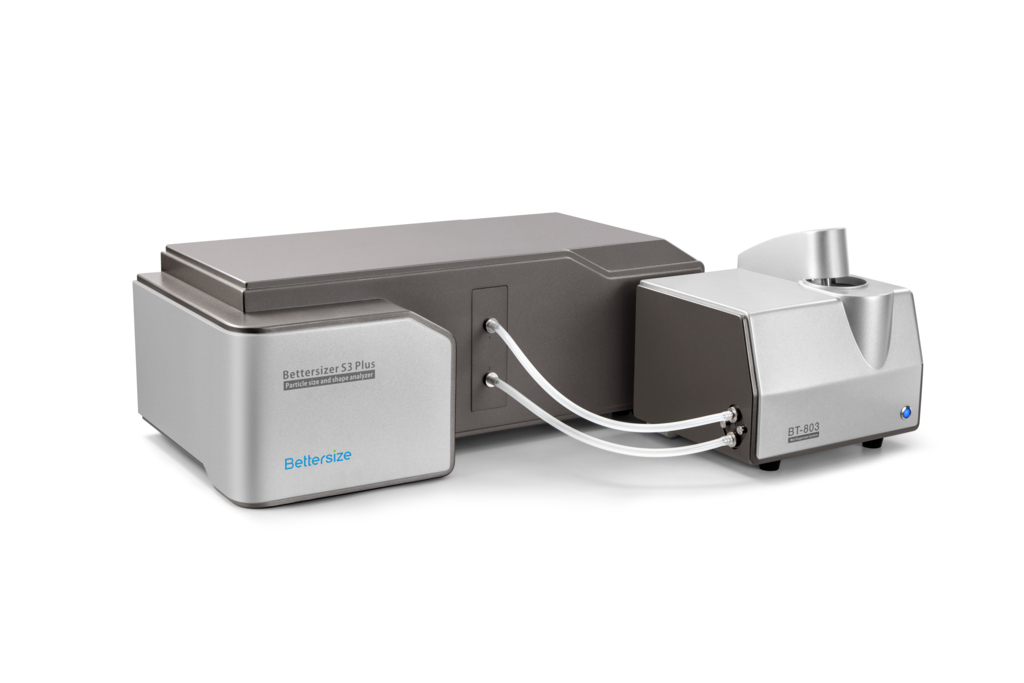

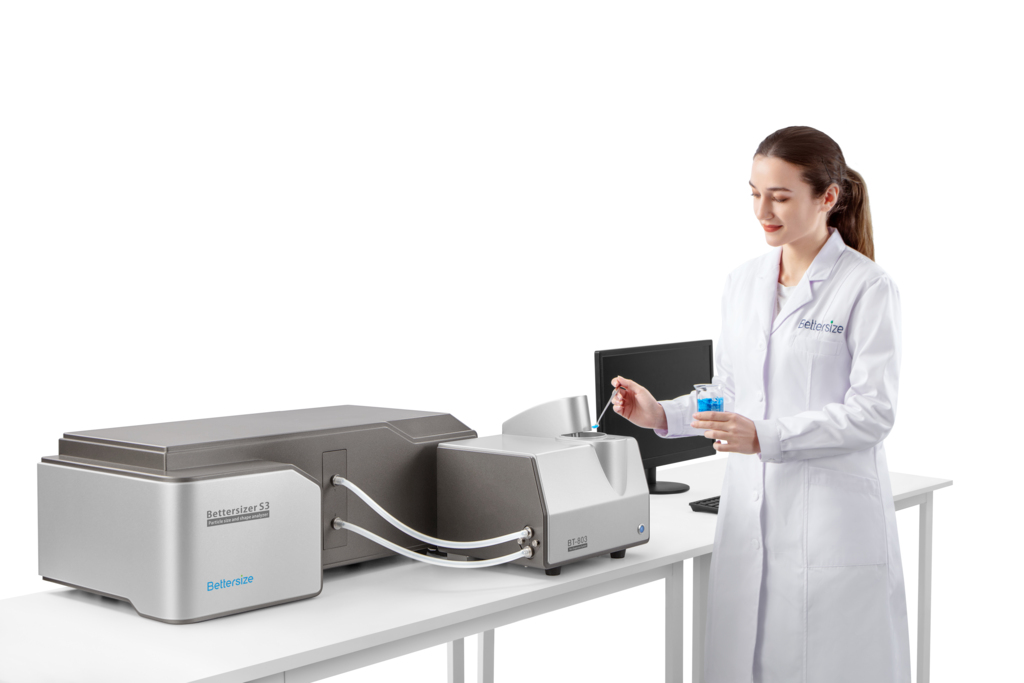

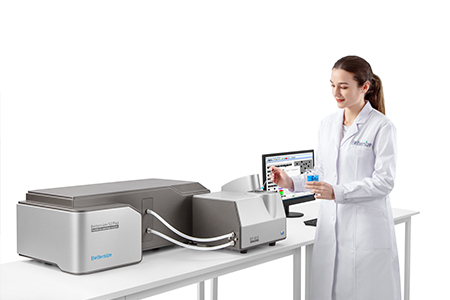

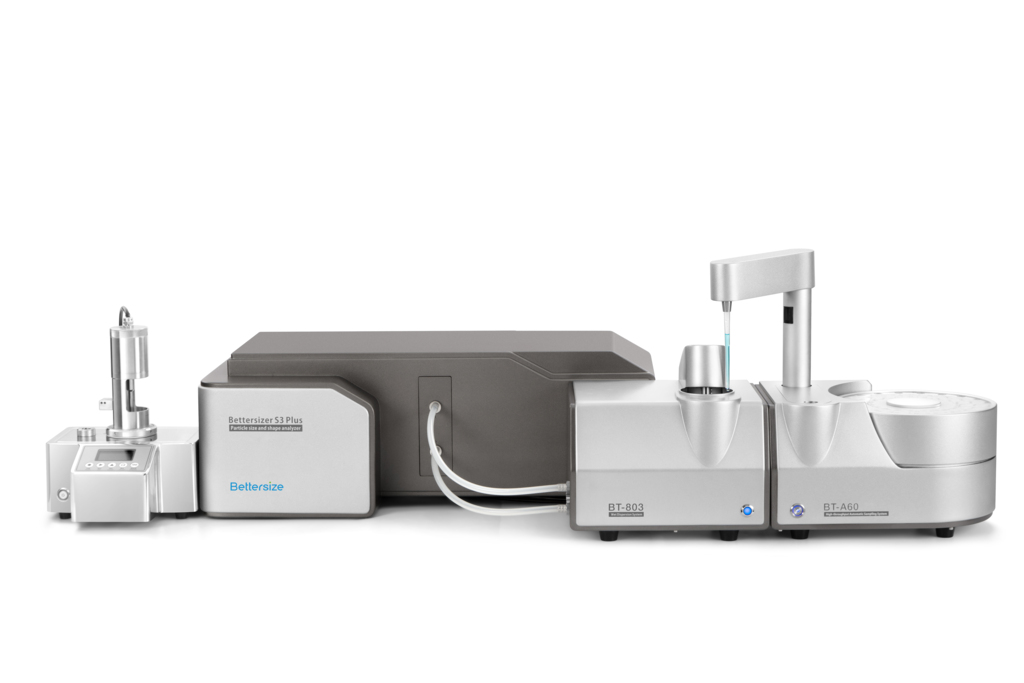

PARTICLE SIZE ANALYZER BETTERSIZER S3 PLUS
The Bettersizer S3 Plus is a laser diffraction particle size and shape analyzer equipped with two high-speed CCD cameras (0.5X and 10X magnification) to capture images of the sample being measured. During measurement, the particles dispersed in the medium of choice are pumped through two sample cells. In the first one, short-wave laser light (532 nm) illuminates particles and is scattered. The 96 detectors detect optical signals in an angle range of 0.02° - 165°. The CCD cameras continuously take pictures of particles through the second sample cell to provide shape information in the range of 2 to 3500 µm.
PARTICLE SIZE ANALYZER BETTERSIZER S3 PLUS
Features and Benefits
● Measuring range is 0.01 - 3,500μm (laser system), 2 - 3,500μm (image system)
● Combining laser diffraction and dynamic image analysis in one instrument, obtaining size and shape results simultaneously
● Patented DLOI (Dual Lenses & Oblique Incidence) system enable the measurement of ultrafine particles down to 0.01 um
● Dual-camera imaging technology can show particles images in real time and detect oversized particles up to 3500 um
● Refractive index measurement determines the refractive index of unknown samples and improves te reliability of results
● Compliance with 21 CFR Part 11, ISO 13320, USP <429>, CE
Specification:
|
Bettersizer S3 Plus |
|
|
Parameter Measured |
|
|
Particle size distribution |
Suspension, emulsion, dry powders |
|
Particle shape |
|
|
General |
|
|
Principle |
Laser diffraction and dynamic image technologies |
|
Analysis |
Mie scattering theory and Fraunhofer diffraction theory |
|
Typical measurement time |
Less than 10 seconds |
|
Measurement Performance |
|
|
Measuring range |
0.01 - 3500 μm (Laser System) |
|
Accuracy |
<0.5% (NIST certified standards) |
|
Repeatability |
<0.5% (NIST certified standards) |
|
Number of size classes |
≤100 (adjustable) |
|
Feeding mode |
Automatic circulation or semi-automatic circulation |
|
Special functions |
Refractive index measurement, SOP settings |
|
Image recognition |
Up to 120 fps, up to 10,000 particles per min |
|
Main Device |
|
|
Optical system |
Patented DLOI (Dual Lenses & Oblique Incidence) System |
|
Laser |
Polarized light-pumped solid-state laser (10 mW / 532 nm) |
|
Detector |
96 detectors (forward, lateral and backward arrangements) |
|
Measuring angle |
0.02 - 165° |
|
CCD cameras |
0.5x and 10x * |
|
Image analysis |
1.2 megapixels |
|
Dispersion Module |
|
|
Circulation speed |
300 - 2500 r/min |
|
Circulation flow rate |
3000 - 8000 mL/min |
|
Untrasonication |
Dry run protection, Max 50 W (adjustable) |
|
Circulation tank capacity |
600 mL |
|
Software |
|
|
Conformity |
21 CFR Part 11, ISO 13320, ISO 13322, USP <429>, CE |
|
Report |
Customizable reporting |
|
System Parameters |
|
|
Dimensions (L x W x H) |
820 × 610 × 290 mm |
|
Weight |
48 kg |
|
Voltage |
DC 24 V, 50 / 60 Hz, 20 W |
|
Computer Configuration (Recommended) |
|
|
Computer interface |
At least one high-speed USB 2.0 or USB 3.0 port required |
|
Operating system |
Windows 7 / Windows 10 |
|
Hardware specification |
Intel Core i7, 8GB RAM, 500GB HD, two PCI-E X16 interfaces |
|
* The Bettersizer S3 Plus is also available in a single camera (0.5x) model. Contact us for more information. |
|
