ARMFIELD LTD

AXIAL FAN DEMONSTRATION UNIT FM 41

Mã sản phẩm: FM41

The axial fan produces gas flow by virtue of the momentum changes imparted across the rotary blades, parallel to the axis of rotation. Such fans are more suitable for higher flows at lower delivery pressures than their centrifugal counterparts.

Comparison of the performance characteristics of the FM41 Axial Fan with those of the FM40 Centrifugal Fan thus provides an instructional exercise of valuable practical application.

Share

AXIAL FAN DEMONSTRATION UNIT FM 41

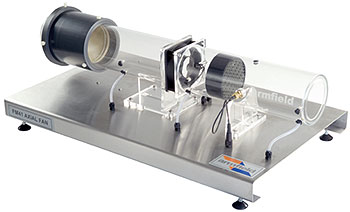

  • A small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
  • Equipped with electronic measurement sensors for fan head pressure, flow-rate (via orifice plate), fan speed and air temperature.
  • Transparent ducts give visibility of the fan in operation.
  • Capable of being linked to a PC (not supplied) via a dedicated interface console (an essential accessory).

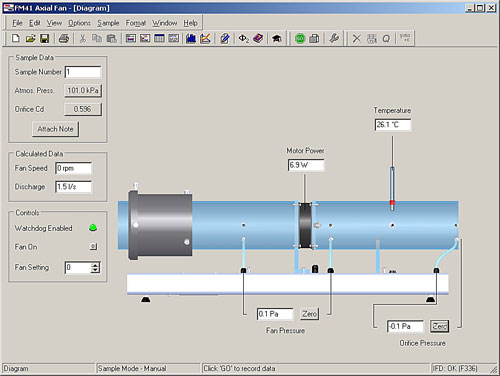

  • Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.

INSTRUCTIONAL CAPABILITIES:

  • Measurement of inherent-speed machine performance in terms of static and total pressures, rotor speed and motor input power, as a function of inlet flow
  • Measurement of overall efficiency and estimation of impeller power efficiency
  • Measurement of performance at constant speeds
  • Introduction to similarity laws for scale-up
  • Comparison of student calculations with computer results

SPECIFICATION:

  • Max Flow Rate: 38 l/s typical
  • Max Head: 0.06 KPa
  • Max fan speed 2700rpm
  • Motor Power rating 5W



AXIAL FAN DEMONSTRATION UNIT FM 41
