ARMFIELD LTD

SERIES AND PARALLEL PUMPS DEMONSTRATION UNIT FM51

Mã sản phẩm: FM51

Centrifugal pumps are often used together to enhance either the flow rate or the delivery pressure beyond that available from the single pump.

The unit is designed to demonstrate the operational advantages of parallel or series operation, depending on the required duty.

Share

SERIES AND PARALLEL PUMPS DEMONSTRATION UNIT FM51

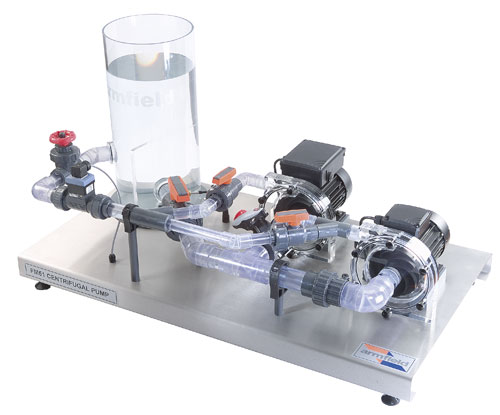

  • A small-scale series/parallel pump demonstration unit, comprising of a water reservoir, two pumps, control valves and interconnecting pipework, all mounted on a stainless steel base.
  • Equipped with electronic measurement sensors for pump head pressure (2 off), suction, flow- rate and water temperature.
  • Transparent pump volutes for visibility.
  • Inlet valve throttling demonstrates air release.
  • Supplied with different easily interchangeable impellers.
  • Capable of being linked to a PC (not supplied) via a dedicated interface console.

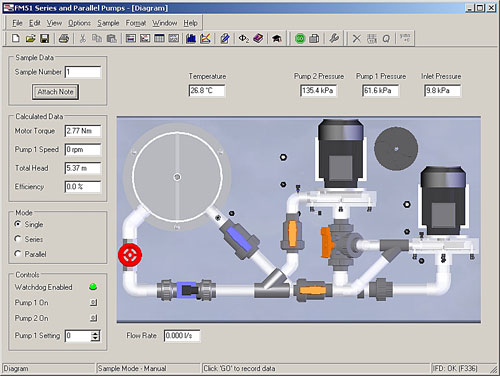

  • Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.

INSTRUCTIONAL CAPABILITIES

  • Demonstration of either series, parallel or single pump operation
  • Measurement of constant-speed pump performance, including production of characteristic curves (one pump)
  • Comparison of head-flow characteristics with single pump operation, at inherent speed
  • Investigation of impeller styles
  • Comparison of student calculations with computer results

PERFORMANCE SPECIFICATION

Max Flow Rate:         2.2 l/sec

(parallel pumping,     both pumps 50 Hz)

Max Head:     6.0 m (single pump)

12.0m (series)

Max pump speed      1800 rpm

(pump1)

1500 rpm

(pump 2 nominal)

Motor Power rating   250W



SERIES AND PARALLEL PUMPS DEMONSTRATION UNIT FM51
