ARMFIELD LTD

CENTRIFUGAL PUMP DEMONSTRATION UNIT FM50

Mã sản phẩm: FM50

The centrifugal pump is the machine most commonly used to move liquids from one place to another. As such it is a particularly instructive unit with which to introduce students to the whole subject of rotodynamic fluid machines.

Discovering the relationship between head, flow, rotational speed and power provides a framework of general applicability. For example, matching the required duty point to the conditions of maximum energy efficiency may be explored as a creative student project.

Share

CENTRIFUGAL PUMP DEMONSTRATION UNIT FM50

  • A small-scale centrifugal pump demonstration unit, comprising of a water reservoir, the pump, control valves and interconnecting pipework all mounted on a stainless steel base.
  • Equipped with electronic measurement sensors for pump head pressure, suction, flow-rate and water temperature.
  • Transparent pump volute for visibility
  • Capable of being linked to a PC (not supplied) via the IFD7 interface console (available as an essential accessory).

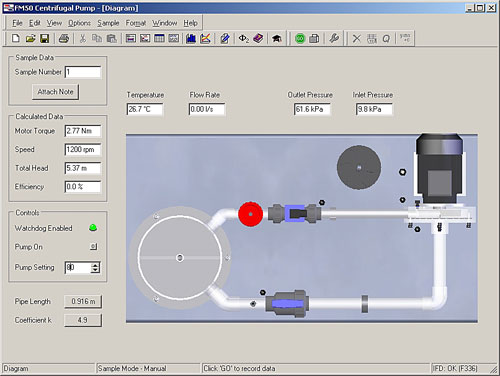

  • Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises

INSTRUCTIONAL CAPABILITIES

  • Demonstration of a single-stage centrifugal water pump in operation.
  • Measurement of constant-speed pump performance, including production of characteristic curves:

            - pump total head

            - motor shaft power

            - impeller speed

            - pump efficiency

  • Introduction to pump speed laws.
  • Investigation of impeller styles.
  • Comparison of student calculations with computer results.

PERFORMANCE SPECIFICATION

  • Max flow rate: 1.6L/sec typical
  • Max head: 9.0m
  • Max pump speed: 1800rpm
  • Motor power rating: 250W

CENTRIFUGAL PUMP DEMONSTRATION UNIT FM50
