ARMFIELD LTD

F1-10 HYDRAULICS BENCH

Mã sản phẩm: F-10

The F1-10 unit is a portable and self-contained service module providing a controlled flow of water to a range of optional accessories. It is supplied as standard with the Fluid Mechanics F1-aBASIC Software.

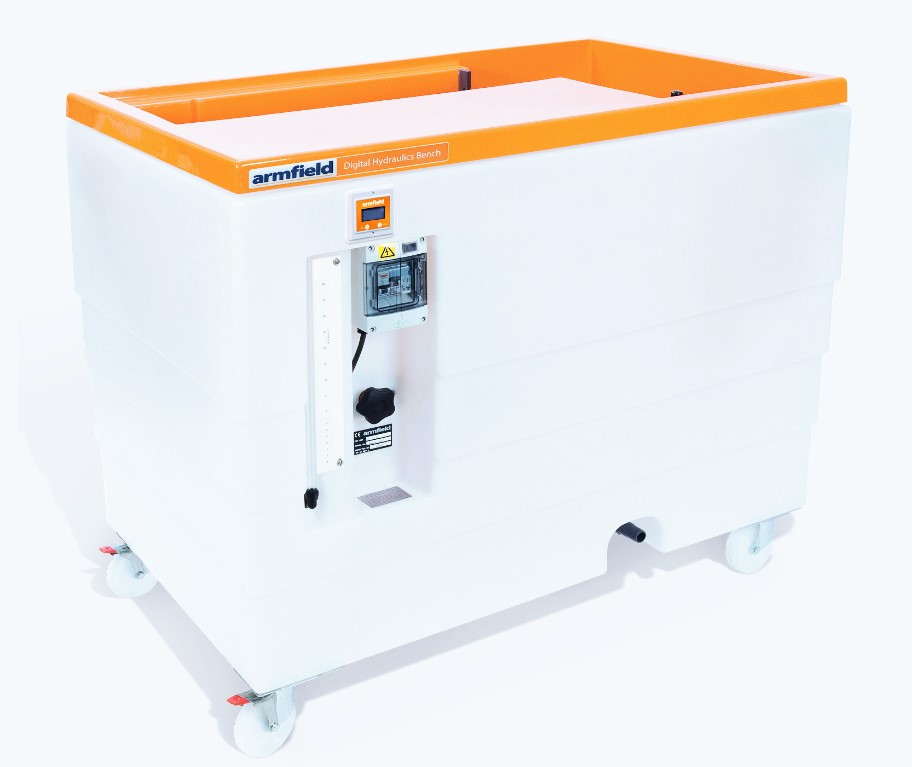

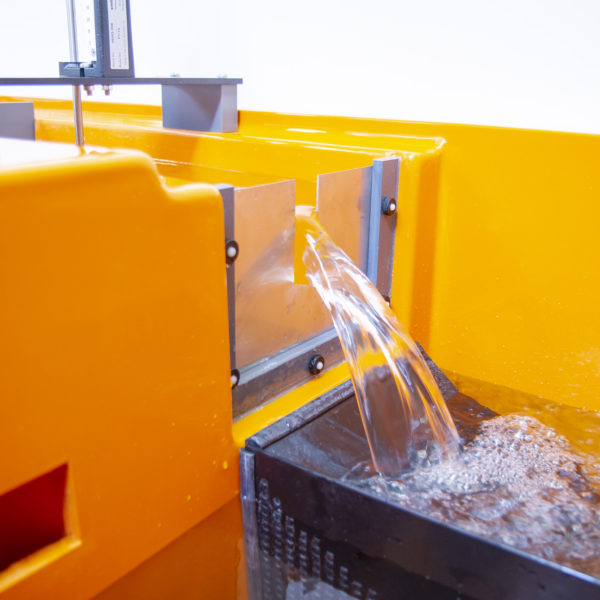

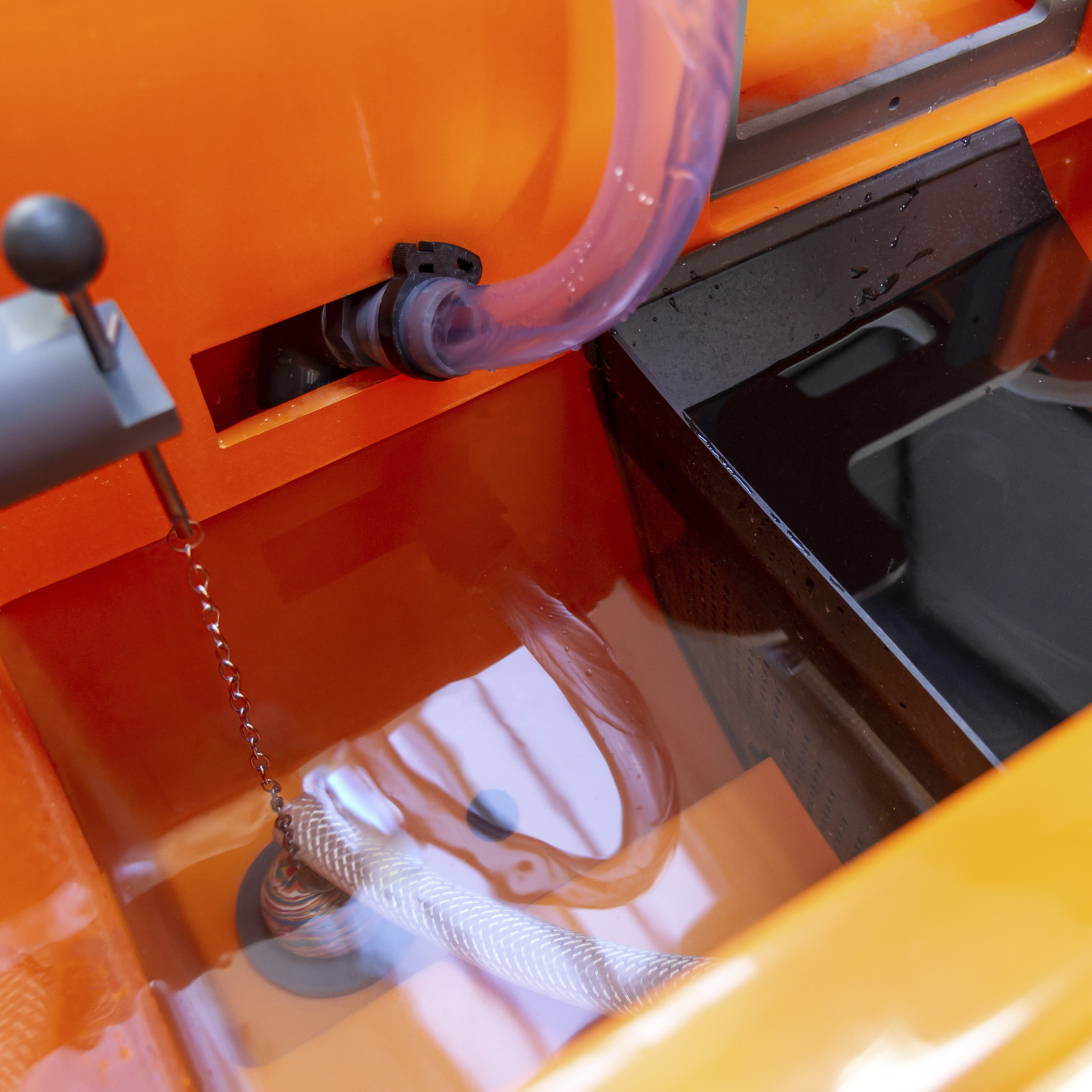

This mobile bench is constructed from lightweight corrosion-resistant plastic and incorporates an open channel with side channels to support the accessories on test. The hydraulics bench includes a volumetric measuring tank stepped to accommodate low or high flow rates and a stilling baffle to reduce turbulence. A remote sight tube with scale gives an instantaneous indication of water level.

Share

F1-10 HYDRAULICS BENCH

The bench additionally includes a quick-release pipe connector situated in the benchtop enabling rapid exchange of accessories without the need for hand tools, a measuring cylinder for measurement of very small flow rates, stopwatch and a copy of Armfield’s F1-aBASIC educational software.

The F1-10 hydraulics bench can be supplied with either a factory fitted electronic flow meter with digital display or an optional inline digital flow meter that can be added in line to the experiment on test at any time.

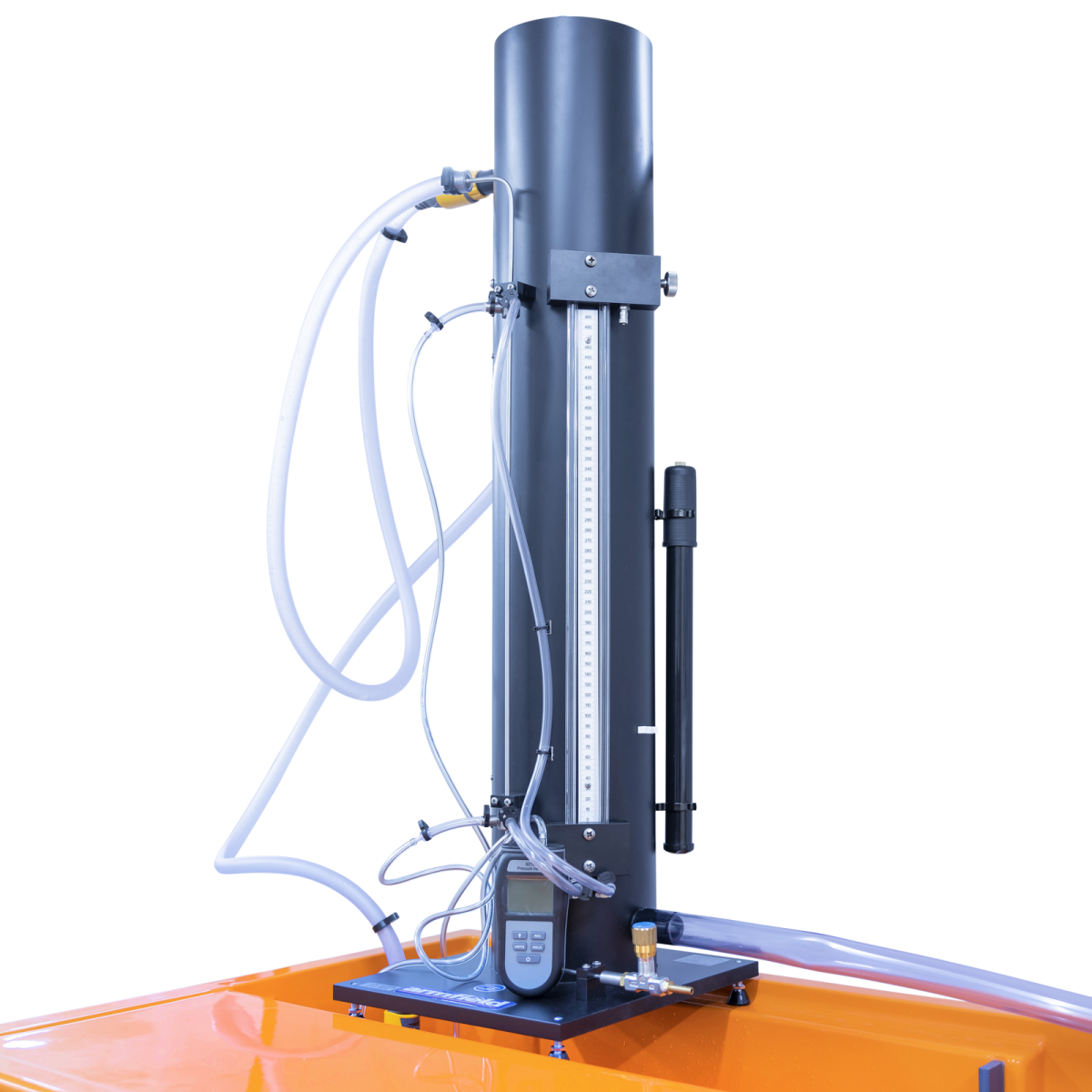

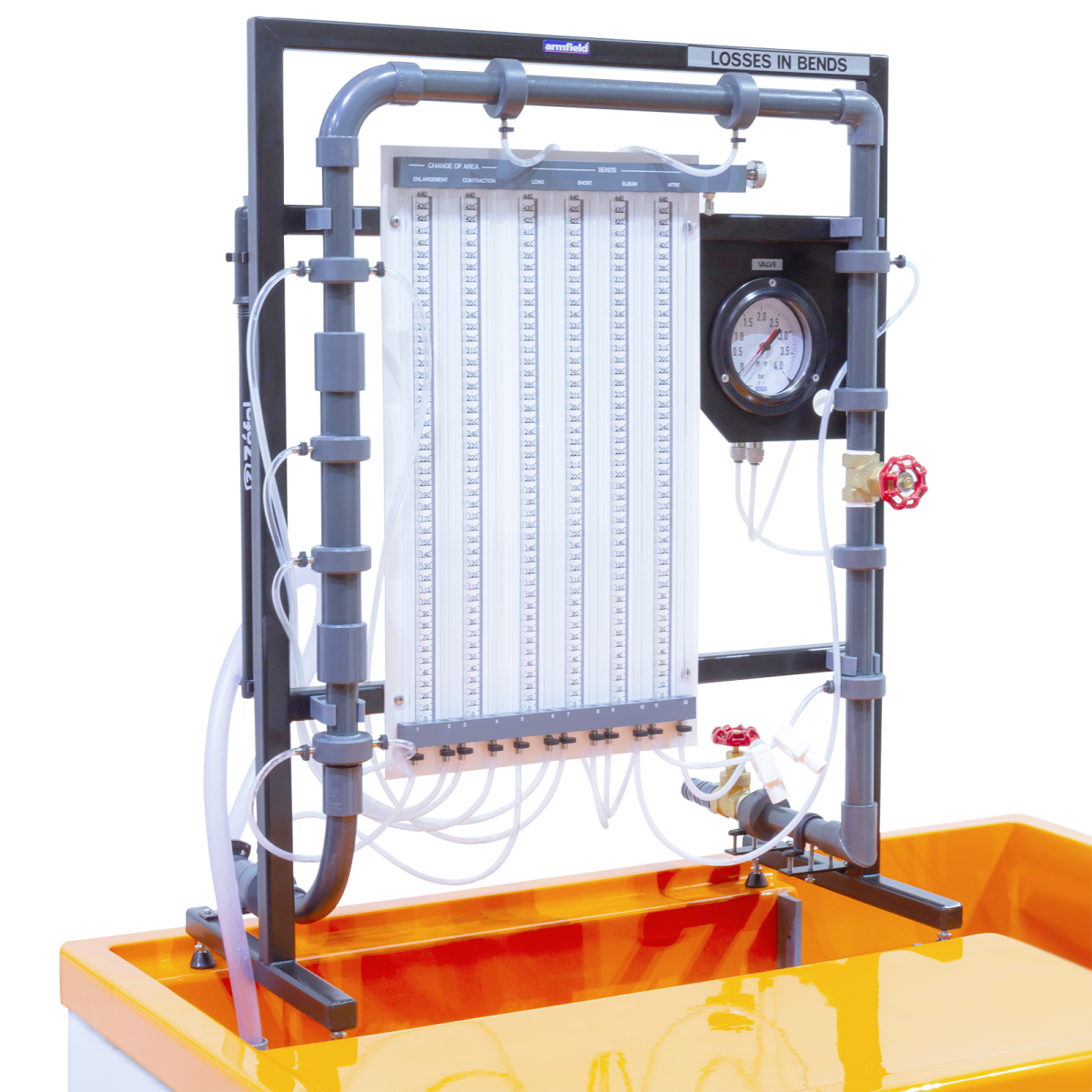

F1-10 connect to F1-22 Energy Losses in Bends and Fittings F1-10 connect to F1-18 Energy Losses in Pipes



TECHNICAL SPECIFICATIONS
Circulating Pump:Submersible

  • Max head: 8.3m H²O
  • Max flow: 80 litres/min (using volumetric tank)
  • Max flow: 100 litres/min (using appropriate accessory)

Motor rating: 0.25kW
Sump tank capacity: 250 litres
High flow volumetric tank: 40 litres
Low flow volumetric tank: 6 litres
Height of working surface: 1m above floor level



ARMFIELD’S F1-ABASIC SOFTWARE

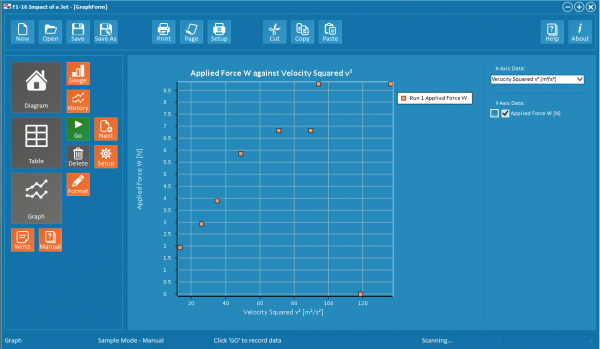

Armfield’s F1-aBASIC software is now included as standard with either of the hydraulic benches. The Armfield software is a powerful manual data entry learning package which enhances the educational content and understanding of Armfield’s F1 Fluid Mechanics accessories that utilise either of the F1-10 Hydraulics benches.





The software allows the user to manually input data from primary instrumentation and offers a powerful tool for displaying and processing the results.



ORDER CODE:

  • Basic Hydraulics Bench F1-10-A:  220-240V / 1ph / 50Hz @ 10 amp
  • Digital Hydraulics Bench (with digital flow meter) F1-10-2-A: 220-240V / 1ph / 50Hz @ 10 amp



F1-10 HYDRAULICS BENCH
