ARMFIELD LTD

CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT FM42

Mã sản phẩm: FM42

Multi-stage compressors are used industrially for high pressure deliveries of gas flows or suction duties. The kinetic energy imparted to the gas by the impeller rotation is converted into pressure energy which progressively increases from stage to stage.

Share

CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT FM42

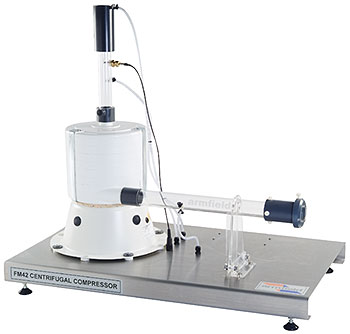

  • A small-scale multi-stage centrifugal compressor demonstration unit, comprising of an inlet duct, the compressor, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
  • Seven stages in the compressor.
  • Equipped with electronic measurement sensors for head pressure, flow-rate (via orifice plate) and air temperature.
  • Capable of being linked to a PC(not supplied) via a dedicated interface console (an essential accessory).

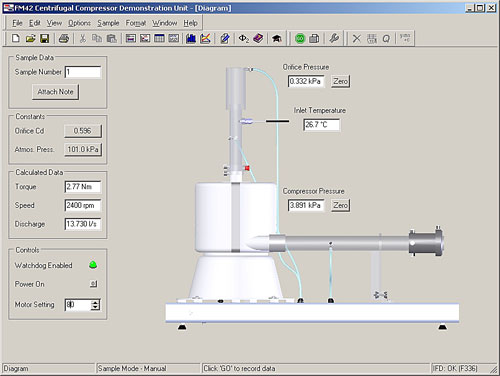

  • Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and          displaying data graphically.
  • Full theoretical back-up together with a student questions and answers session.

INSTRUCTIONAL CAPABILITIES:

  • Measurement of constant-speed machine performance in terms of static and total pressures, rotor speed and motor shaft power, as a function of inlet flow
  • Measurement of compressor efficiency and estimation of impeller power efficiency
  • Measurement of performance at constant speeds
  • Introduction to similarity laws for scale-up
  • Comparison of student calculations with computer results

SPECIFICATION:

  • Max Flow Rate:         20 l/s typical
  • Max Head:     6.0KPa
  • Max fan speed           3000rpm
  • Motor Power rating   250W
  • Number of stages     7
