PROPELLER VELOCITY FLOWMETER H33

CAPABILITIES

• Measurement of velocities in clean conductive fluids within the range 25 to 1500mm/sec (up to 3000mm/sec with high speed probe)
• Operation in confined spaces with limited intrusive effects
• Suitable for both laboratory and field applications - battery powered (rechargeable) and fully portable
• Measurements are indicated on the digital and may be connected to a data logger for later analysis.

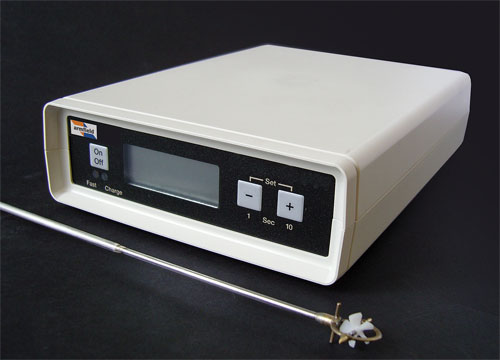

DIGITAL INDICATOR H33-10

The Armfield H33-10 digital indicator has been developed for use with the miniature propeller probes H33- 1/2/3 where laboratory or field measurement of water velocity is required.

MINIATURE PROPELLER PROBES

H33-1:

Is a straight, low speed probe for measuring horizontal velocities in the range 25 to 1500mm/sec.

H33-2:

Is a straight, high speed probe for measuring horizontal velocities in the range 600 to 3000mm/sec. This probe is fitted with streamlined fairing to provide additional strength and freedom for turbulence at higher velocities.

H33-3:

Is a 90° angled, low speed probe for measuring vertical velocities in the range 25 to 1500mm/sec.

PROPELLER VELOCITY FLOWMETER H33
