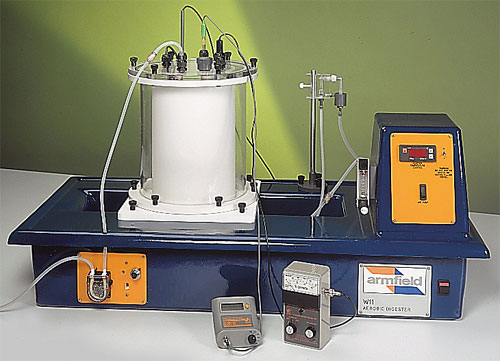

AEROBIC DIGESTER W11

Practical Training Exercises

• Acclimation of a completely mixed biological reactor

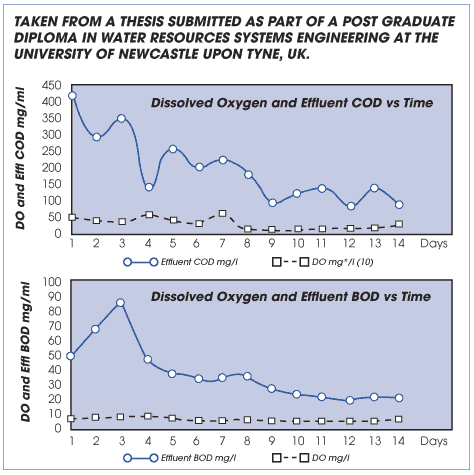

• Measurement of COD and MLSS changes as criteria of performance
• Establishing the stoichiometry and kinetics of aerobic biological processes
• Gas/liquid mass transfer
• Residence time distributions
• 100% scale-up to industrial requirements
• Studying the effect on effluent quality of: inflow substrate concentration ('loading rate'); liquid flow rate and reactor volume ('detention time'); air flow rate; temperature; pH stability; nutrient deficiency

Technical Details

• Feed pump: 24V DC, peristaltic, 0-30rpm corresponding to 0-40 litres/day
• Air compressor: 240V /120V, 0-3.0 litres/minute (STP)

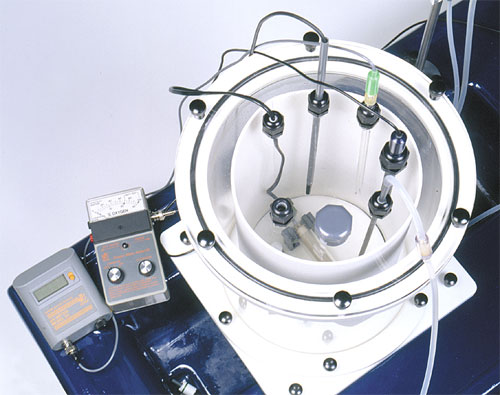

• Reactor vessel: 10 litres maximum capacity
• pH meter: Range: 0.00 to 14.00
• Dissolved oxygen meter: Range: 0-100% saturation
• Resolution: 2%
• Reactor heater: Toughened glass, electrical immersion 200W
• Temperature controller: 3-term PID
• Temperature limit set at 35°C

Requirements

Electrical supply:

• W11-A: 220/240V/1ph/50Hz
• W11-B: 120V/1ph/60Hz
• W11-G: 220/240V/1ph/60Hz
